Forklift Battery Installation Guide
A step-by-step guide to safely replacing your forklift battery. Follow these steps or let one of our certified installation partners handle it for you.
F&K Batteries Does Not Provide Installation Services
We supply replacement forklift batteries but we do not install them. Forklift batteries weigh between 1,000 and 4,000 pounds and require specialized equipment (overhead hoists or battery carts) to install safely. If you don't have the equipment or experience, we strongly recommend using a certified local installation partner listed below.
How to Install a Forklift Battery
Five steps to safely swap your forklift battery. This guide applies to most sit-down counterbalance and reach truck models.

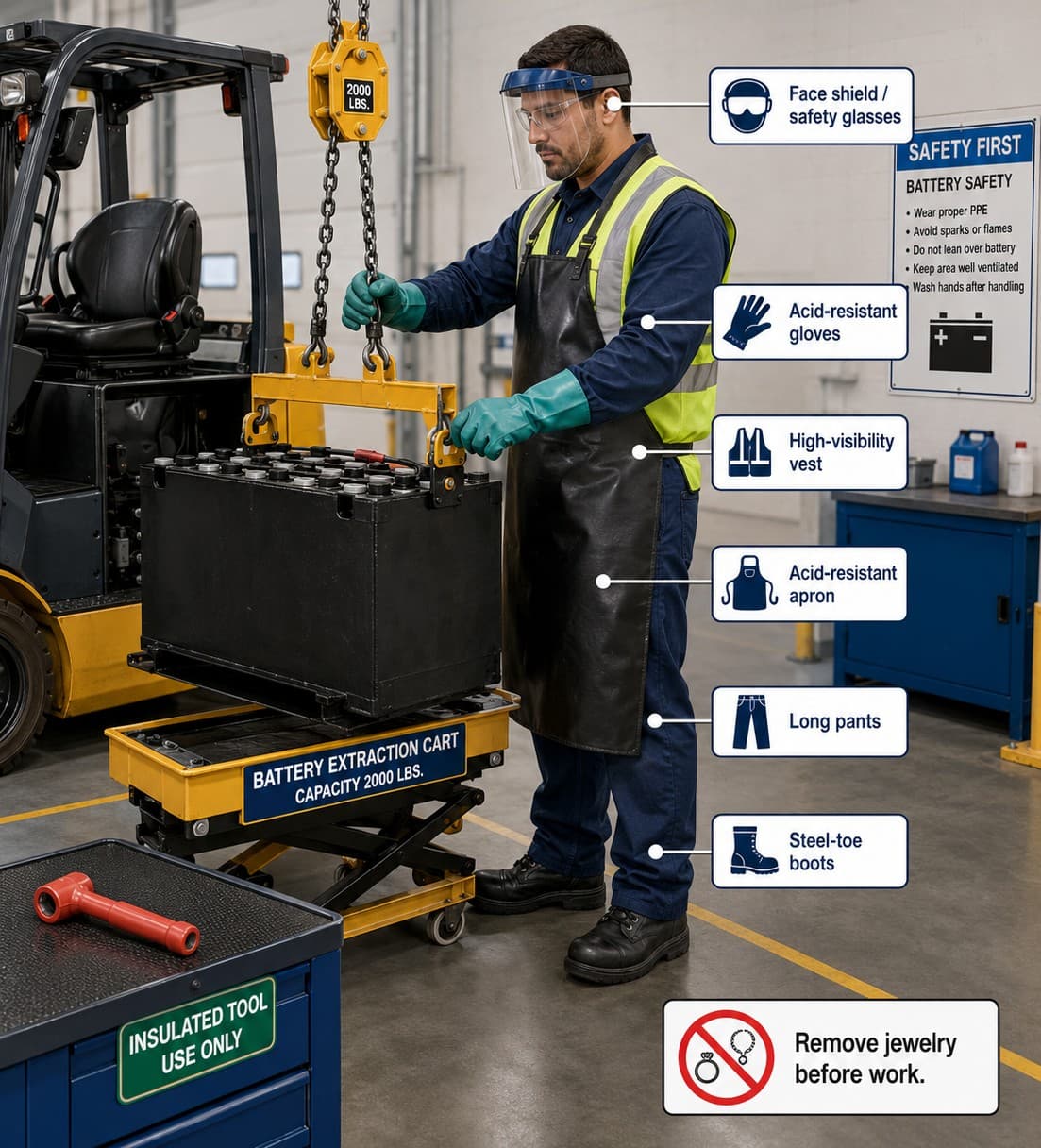

Safety Preparation
Before touching the battery, prepare your workspace and protect yourself.
- •Turn off the forklift and remove the key from the ignition
- •Engage the parking brake and chock the wheels
- •Put on personal protective equipment — safety glasses, acid-resistant gloves, and steel-toe boots
- •Ensure the area is well-ventilated (batteries release hydrogen gas during charging)
- •Keep a baking soda and water solution nearby to neutralize any acid spills

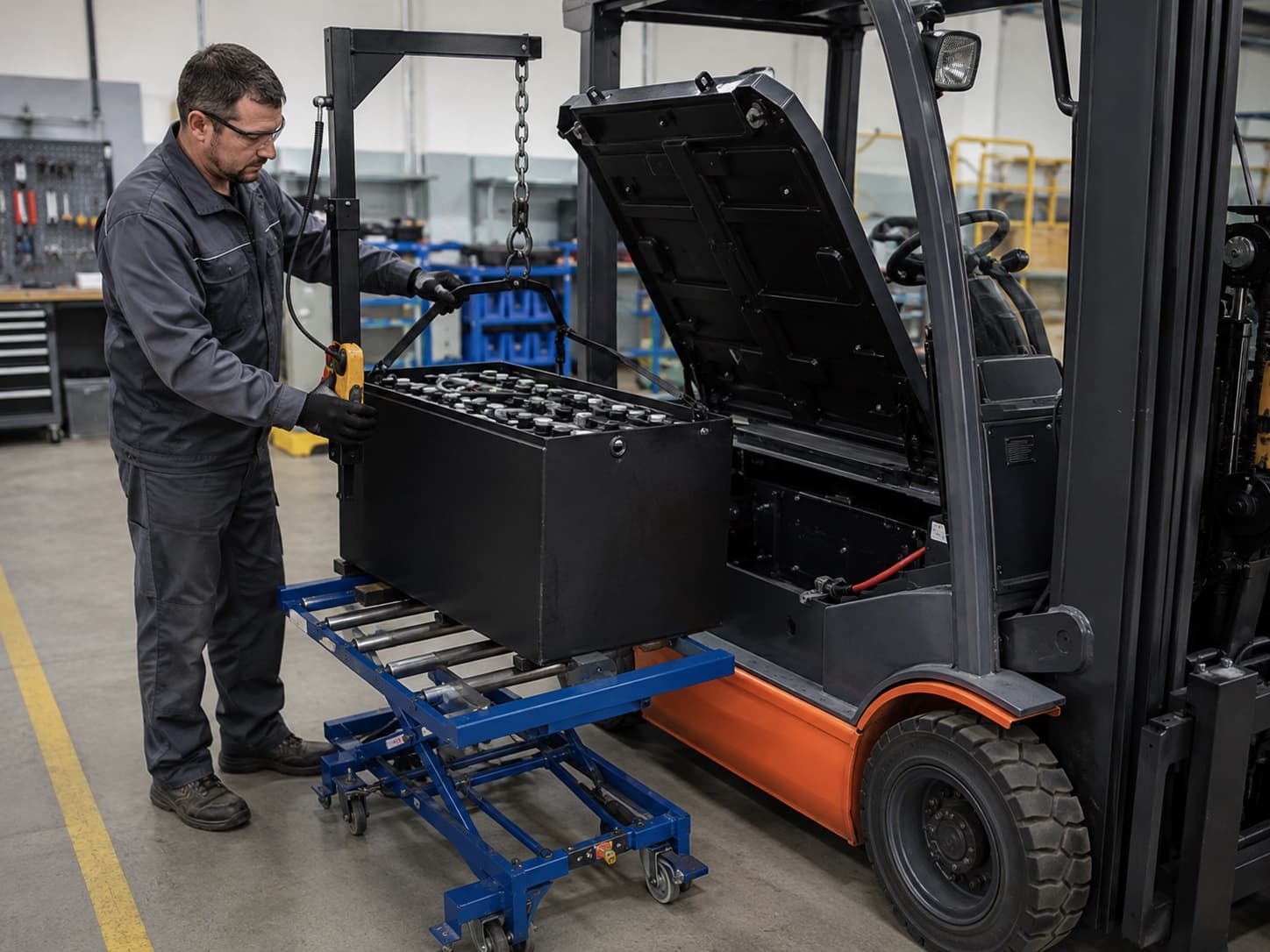

Remove the Old Battery
Disconnect and carefully extract the existing battery from the compartment.
- •Open the battery compartment cover or restraint
- •Disconnect the battery connector — pull it apart firmly and straight, never at an angle
- •Disconnect the negative (−) cable first, then the positive (+) cable if hard-wired
- •Inspect the battery for acid leaks before moving it
- •Use an overhead hoist, battery cart, or forklift with a battery handling attachment to lift the battery out — never attempt to lift by hand (batteries weigh 1,000–4,000 lbs)

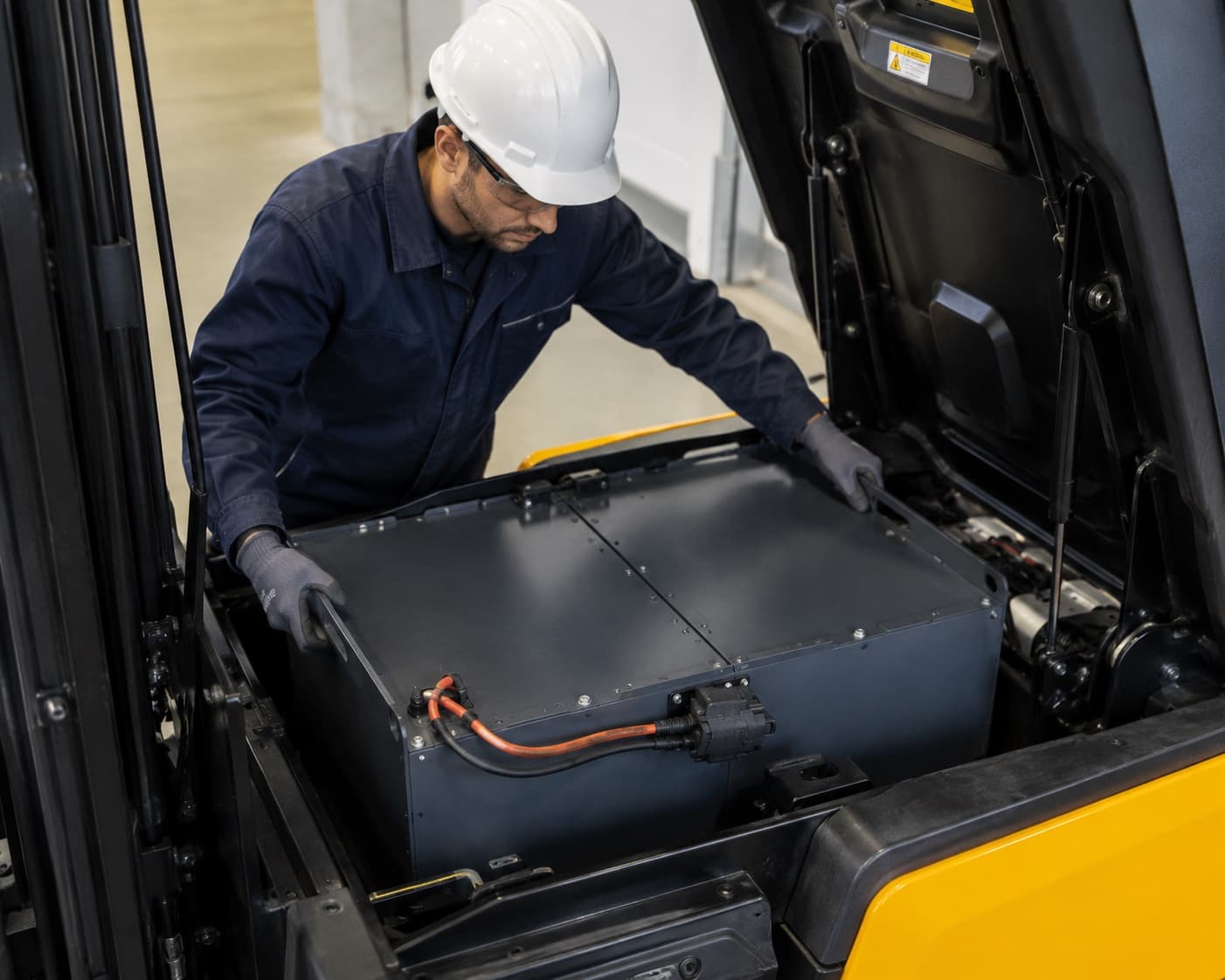

Install the New Battery
Lower the replacement battery into the compartment and verify proper fit.
- •Confirm the replacement battery matches the voltage, amp-hour rating, and compartment dimensions of the original
- •Clean the battery compartment — remove debris, check for corrosion on the tray and contacts
- •Use the hoist or battery cart to carefully lower the new battery into the compartment
- •Ensure the battery sits flat and centered with no rocking or gaps
- •The battery should fit snugly — if it's loose, steel spacers may be needed to prevent shifting

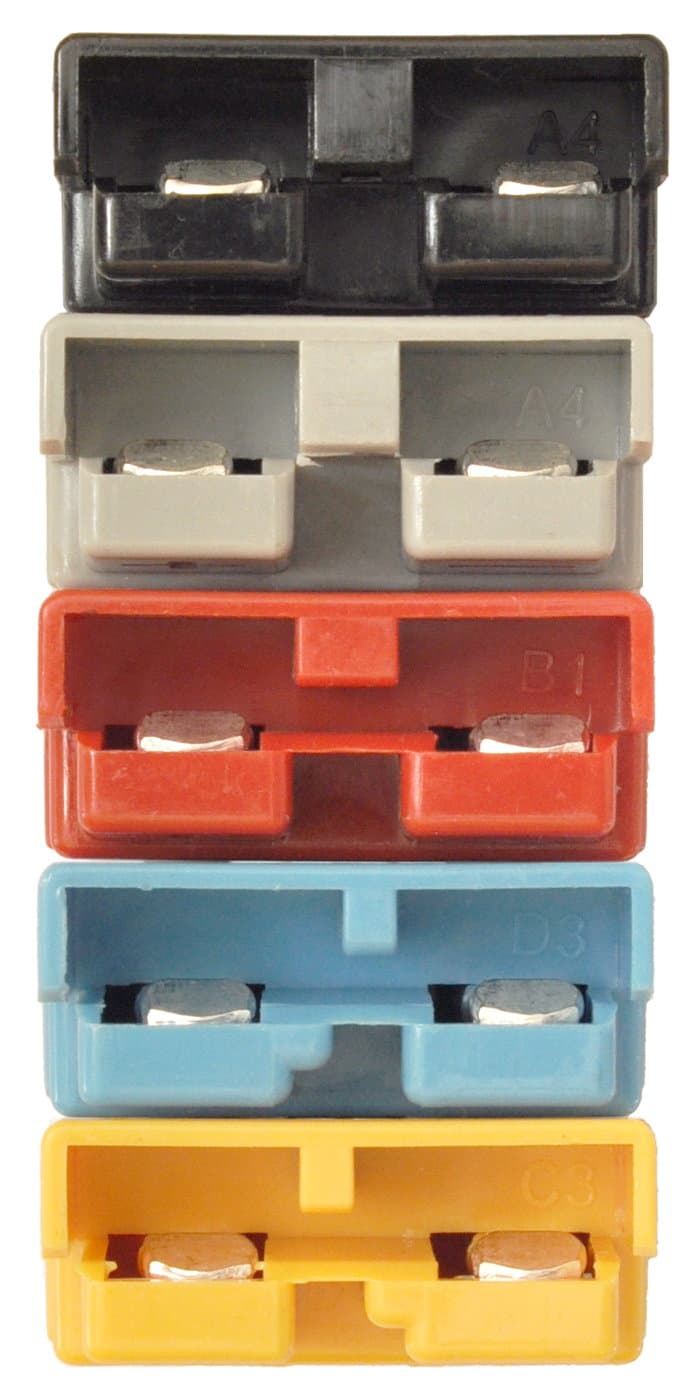

Connect the Battery
Attach the connector and secure the battery in place.
- •Connect the battery connector to the forklift receptacle — push firmly until it clicks and locks
- •If hard-wired, connect the positive (+) cable first, then the negative (−)
- •Verify the connection is tight and secure with no exposed wiring
- •Close the battery compartment cover or re-engage the restraint system
- •Make sure the vent caps are in place and secure

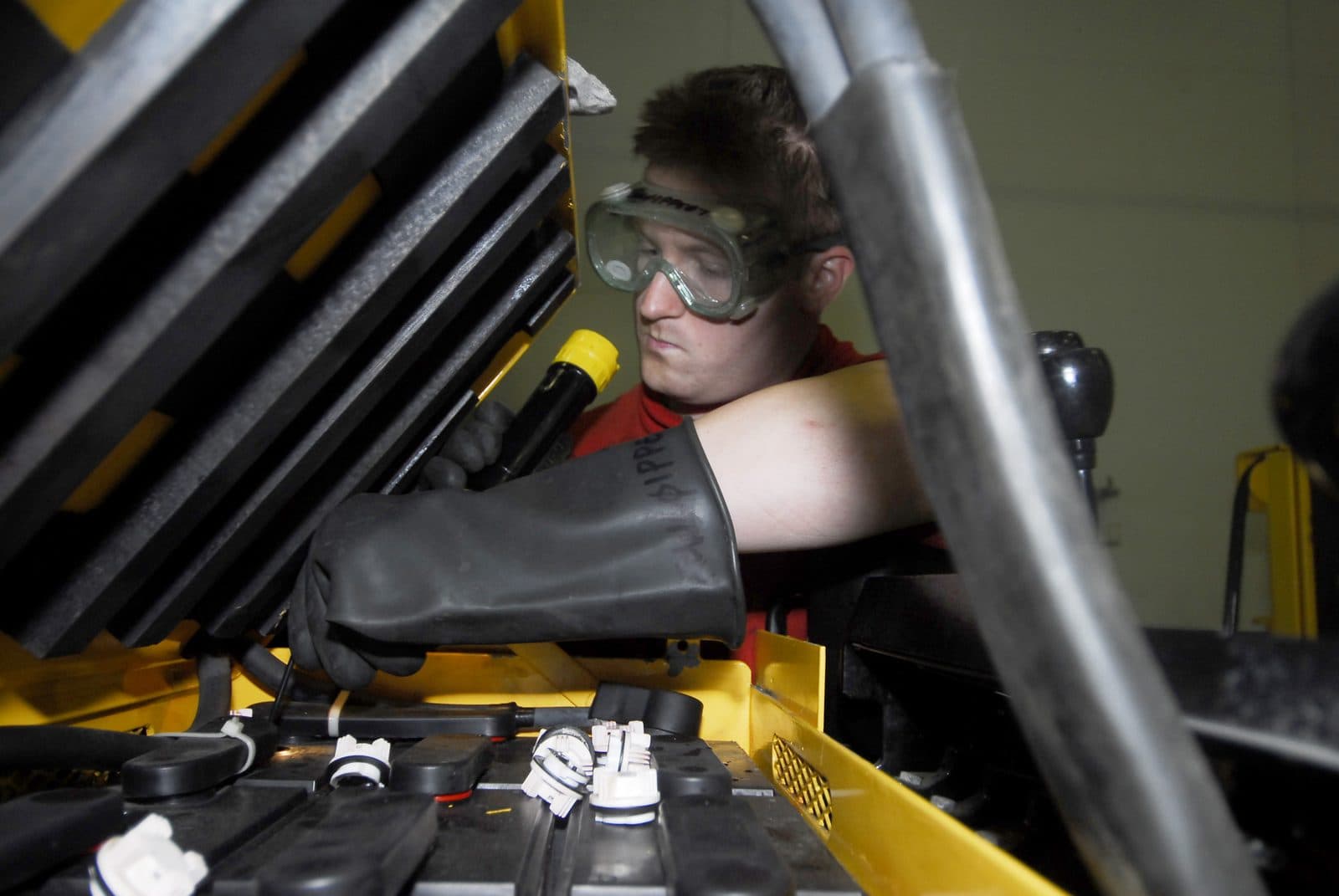

Test & Verify
Power on and confirm everything is working properly.
- •Turn the key and check that the forklift powers on normally
- •Verify the battery discharge indicator (BDI) shows a full charge
- •Test the lift, tilt, and drive functions at low speed in an open area
- •Listen for any unusual sounds — clicking, buzzing, or arcing at the connector
- •Check for proper charger compatibility before the first charge cycle
Need a Replacement Battery?
Scan your forklift nameplate and we'll match you to the exact battery in under 2 minutes.
Certified Installation Partners
Don't have the equipment to install a forklift battery yourself? We work with trusted service partners across the country who can install your new battery on-site.
Northeast
Installer referral available
States: NY, NJ, PA, CT, MA, RI, VT, NH, ME
Services: Battery installation, removal, disposal, fleet maintenance
Call (763) 250-0609 for a local installerSoutheast
Installer referral available
States: FL, GA, NC, SC, VA, TN, AL, MS, KY, WV
Services: Battery installation, charger setup, preventive maintenance
Call (763) 250-0609 for a local installerMidwest
Installer referral available
States: OH, MI, IL, IN, WI, MN, IA, MO, KS, NE, ND, SD
Services: Battery installation, watering systems, fleet services
Call (763) 250-0609 for a local installerSouth Central
Installer referral available
States: TX, AR, LA, OK
Services: Battery installation, removal, recycling, charger repair
Call (763) 250-0609 for a local installerMountain
Installer referral available
States: CO, AZ, NM, UT, NV, ID, MT, WY
Services: Battery installation, compartment modification, fleet management
Call (763) 250-0609 for a local installerWest Coast
Installer referral available
States: CA, OR, WA
Services: Battery installation, compartment modification, fleet management
Call (763) 250-0609 for a local installerDon't see your region?
Call us and we'll connect you with a qualified installer in your area.
Call (763) 250-0609Important Safety Reminders
Forklift batteries contain sulfuric acid. Always wear acid-resistant gloves and safety glasses when handling.
Never attempt to lift a forklift battery by hand. Use an overhead hoist, gantry crane, or battery cart rated for the weight.
Batteries produce hydrogen gas during charging. Always charge in a well-ventilated area away from open flames.
Follow your facility's lockout/tagout (LOTO) procedures before starting any battery replacement work.
Image credits: Step 4 connector photo by Malvineous via Wikimedia Commons (CC BY-SA 4.0). Step 5 battery testing photo is a U.S. Navy work in the public domain.
